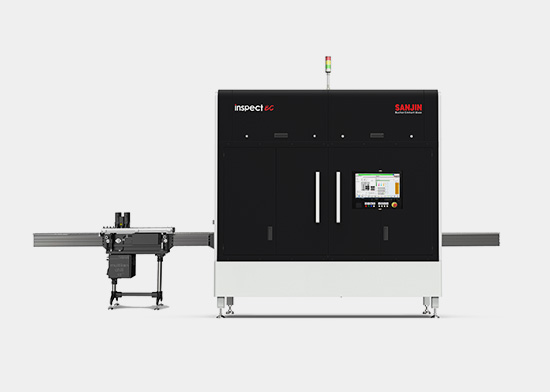

The inspect BC is a reliable and uniquely configurable platform that easily allows inspection functionality to be added as required.all adjustments are fully motorized providing unmatched repeatability and shortest job changes times giving glassmakers flexibility and value.The B side with its high-resolution cameras and special optics inspects the complete bottom area with advanced algorithms including stipple and baffle filters(also for non-rounded)

Features

-Quick job changes for new articles,fully automatic recall of previous jobs,no manual adjustments

-Dust proof optical assemblies(cameras&lights)and air-conditioned electrical enclosures,

-Cavity correlation of all defects

-Traceability of change

-Independent belt position for tapered ware

-4-Servo driven carry belts

-Integrated 21.5”touch display

-High resolution camera standard.

Ware Range

-Height:40mm-350mm up to 440mm optional

-Body Diameter:15mm-160mm

-Finish Diameter:4.5mm-120mm

Available Inspections

B-Side

-Base Inspection

-Base Stress

-Sealing Surface Finish 1

-Sealing Surface Finish 2

-Vision mold number reader in base station(heel codes and base codes-top down)

-Smart vision mold number reader(seven segment base code-top down)

C side

-Bottle sidewall inspection

-Bottle shoulder inspection

-Bottle sidewall stress inspection

-Smart light source，take multi photos for one bottle
